wheel sand washing machine

Usage and application:

 Wheel Sand Washing machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.Sand Washing Machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.

Working principle:

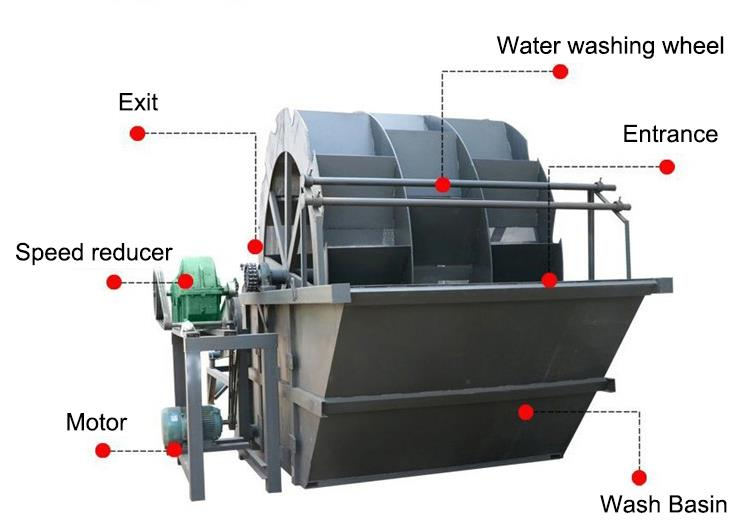

After the motor is decelerated by the V-Belt, reducer and gear, the impeller rotates slowly. The gravel enters the washing tank from the feeding trough, and is tumbling under the impeller to wash the sand. Finally, the sand is poured from the rotating impeller into the discharge trough to complete the cleaning operation of the gravel.

Features

1.Saving water resources, pollution-free and high cleanliness;

2.Less sand lose during washing;

3.Larger handling capacity, low power consumption, easy movement;

4.Almost no wear parts except screen mesh. Thus, It has longer service life.

5.The transmission parts is separated from the water and sand, which largely avoid the damage caused by being soaked in water, sand, or pollutants.

Main technical specifications:
