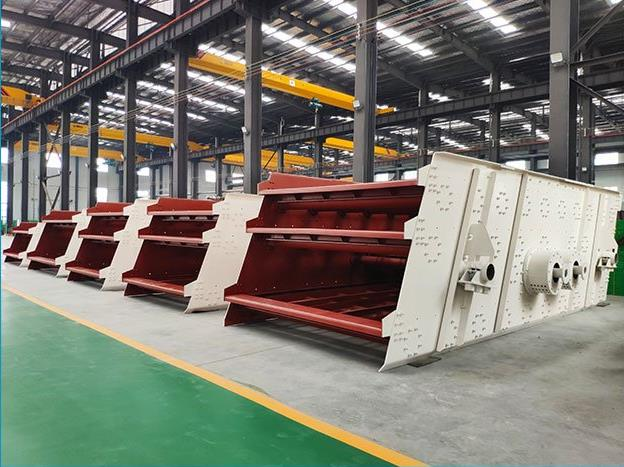

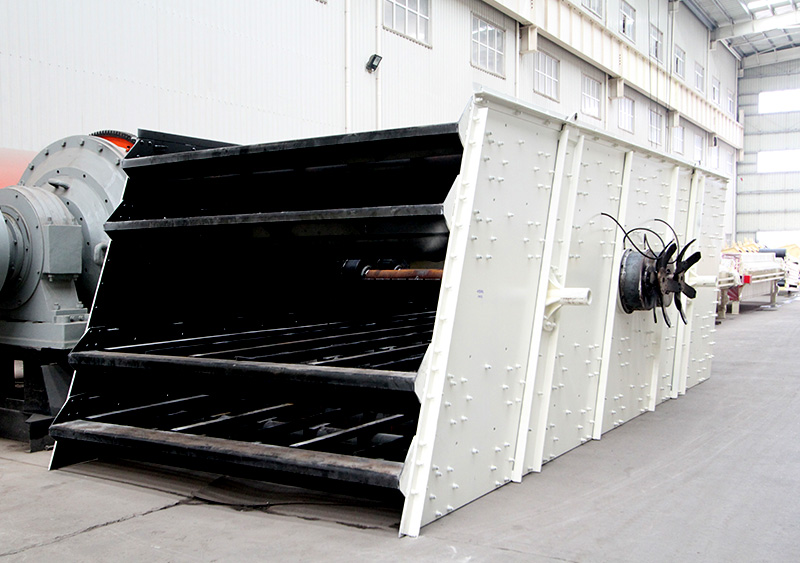

Circular vibrating screen

Usage and application:

vibrating screen are used to separate materials into various sizes for further processing or for end use. The material is separated by passing through a vibrating “screen or meshes” which has a number of different sized according to customer’s requirements. The end products can then be used in the building and construction industries. It feature advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.

Working principle:

Vibrating screen is mainly composed of screening box, exciter, hanging device and electromotor. The electromotor drives the principal axis of the exciter to rotate through v-shaped belt, and under the centrifugal inertia force of the unbalanced materials on the exciter, the screen box will gain vibration and it can gain different vibration amplitudes through changing the eccentric block of the exciter.

Features:

1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole, so that the circular vibrating screen has high screening efficiency and production efficiency.

2. The circular vibrating screen has simple structure and the dismantling and changing of the screen surface is convenient.

3.The electricity consumed to screen every ton of materials is low

Main techncial specifications:
