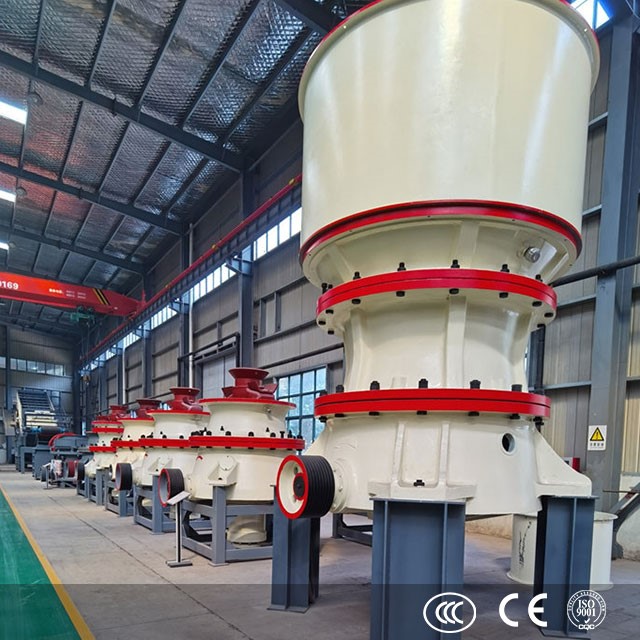

single cylinder hydraulic cone crusher
Usage and application :

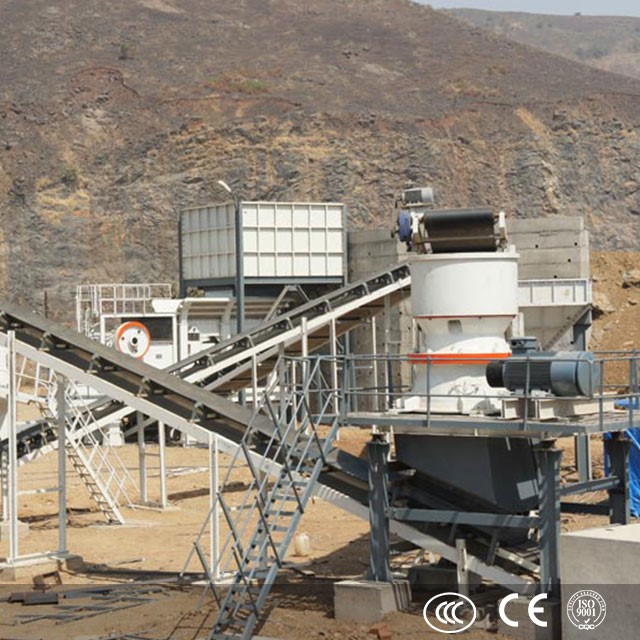

single-cylinder hydraulic cone crusher is an ideal crusher machine to crush hard rocks or minerals for middle granul size crushing or fine granul size crushing.Single-cylinder hydraulic cone crusher is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemicial industry, etc. It could crush limestone, granite, basalt, riverstone, coal gangue, quartz, diabase, iron ore, c

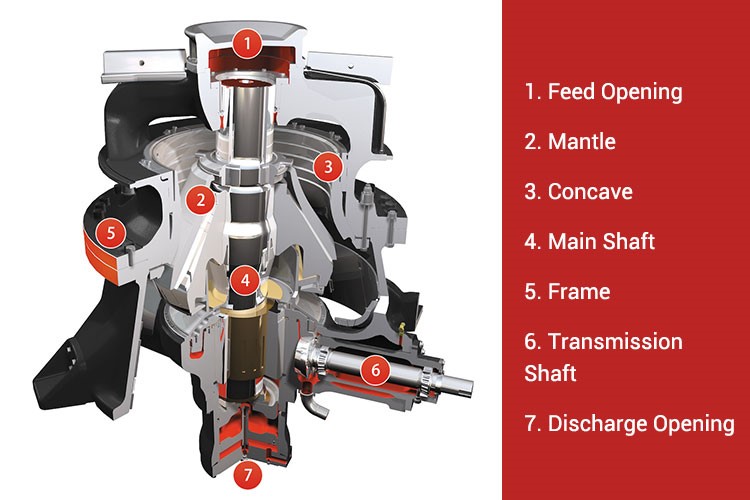

Working principle
When the single-cylinder hydraulic cone crusher is working, motor drive the eccentric sleeve by v-belts, transmission shaft and transmission gear. Dynamic conerotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from the bottom.
Features:
1.High production capacity, high crushing efficiency;
2.Laminate broken, good product size;
3. A variety of chamber types combine the best strokes to accommodate a wide range of particle size requirements;
4. The life of easily wearing parts is long;
5.Simple design, convenient maintenance, low operating costs;
Main technical specifications:
Model |
Cavities |
Feeding Size(mm) |
Adjusting Range of Discharge Opening (mm) |
Capacity(t/h) |
Power(kw) |
DG100 |
Coarse |
200 |
20-50 |
80-190 |
75-90 |
Medium |
150 |
16-40 |
60-125 |
||
Fine |
50 |
10-30 |
40-100 |
||
DG200 |
Coarse |
250 |
20-70 |
160-280 |
132-160 |
Medium |
220 |
16-50 |
120-230 |
||
Fine |
70 |
10-30 |
100-210 |
||
DG300 |
Coarse |
300 |
30-80 |
260-650 |
220-250 |
Medium |
240 |
20-60 |
200-400 |
||
Fine |
100 |
16-30 |
150-300 |
||
DG400 |
Coarse |
400 |
35-100 |
350-750 |
250-315 |
Medium |
300 |
25-70 |
260-500 |
||
Fine |
150 |
18-40 |
180-370 |
||
DG500 |
Coarse |
500 |
40-120 |
480-1050 |
280-315 |
Medium |
350 |
30-80 |
335-900 |
||
Fine |
160 |
20-50 |
220-680 |
