impact crusher

Usage and Application

Impact crusher is usually used as medium or fine crushing equipment, which can crush materials with medium or under medium hardness, such as all kinds of ores, rocks, coke, coal and refractory materials in mining, building material, chemical industry, metallurgy

Working Principle

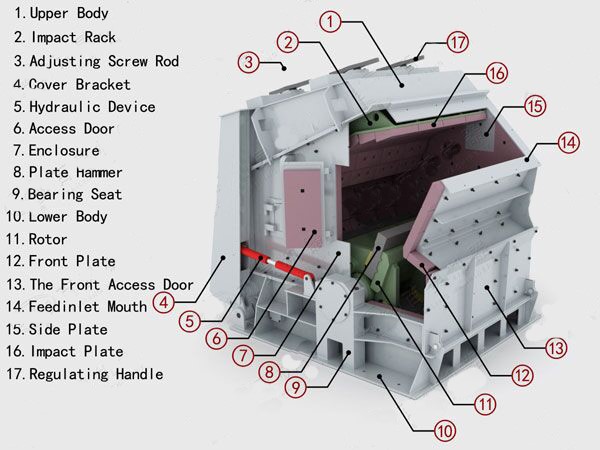

impact crusher is composed of chassis, rotor and impact plate, which is of simple structure. In operating process of impact crushing machine, plate hammer and rotor rotate in high speed and impact with materials; in the repeated impacting process, materials will collide with each other. Due to collision between materials and impact of plate hammer and impact plate, materials generates fissure and dehiscence until they are being crushed. When large materials and materials which are hard to crush are sandwiched between rotor and impact plate, impact plate is suffered from high pressure, thus making impact force backward so as to make materials which are hard to crush go through and prevent rotor from being damaged.

Features

1. Cubic shaped end products;

2. Adjustable end products sizes, simple crushing process;

3. High chrome and abrasion resistant blow bar, powerful impacting force;

4. Non-key connected, easy maintenance, economical and reliable;

5. Compact construction, high efficiency.

Main technical specifications:
