Pulverized coal injection burner
Usage and application:

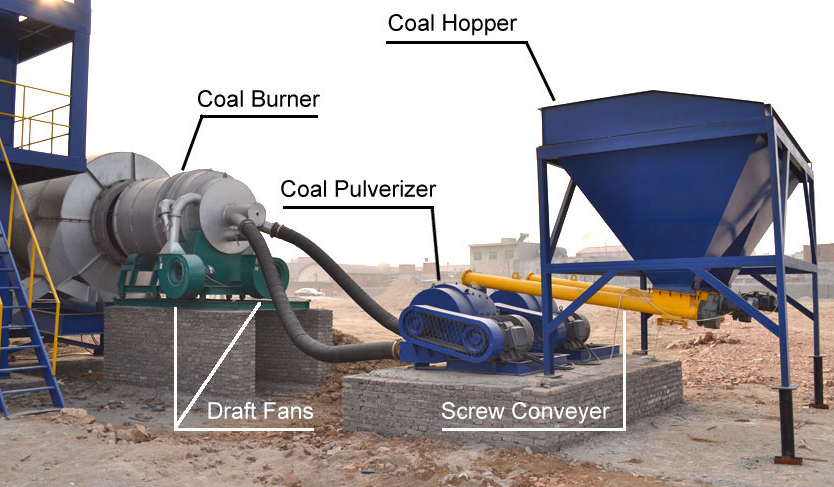

Pulverized coal injection burner is used to grind and offer pulverized coal.It is made up of appending funnel,feeding structure. After the coal lump is crushed and ground,it is sent to the burning furnace in powder shape.
Working principle:

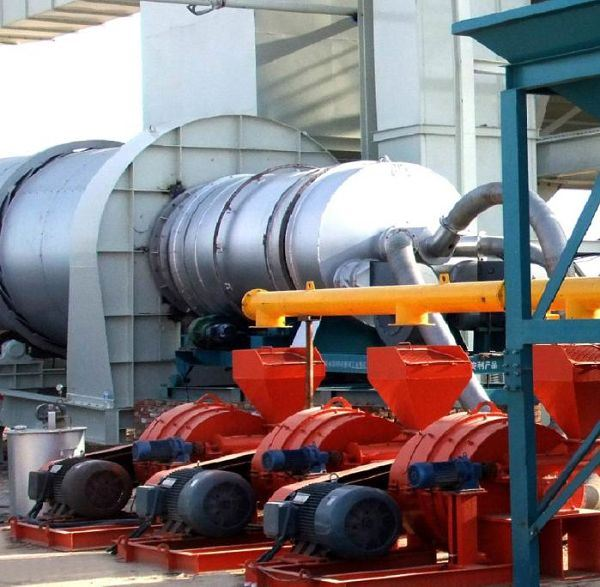

The raw coal of no more than 20mm granularity is injected into the host combustion chamber through a metal hose nozzle by the pulverized coal injection machine and lighted by oil gun atomized diesel. At the same time, the air blower blow air to the combustion chamber through the annular rotary air flue on the host back cover. The air rotates forward against the inner wall andentrains high-temperature smoke flow and burns strongly with pulverized coal. The high-temperature flame flow is injected into the heating furnace by the burner.
Features:
1)Using the exclusive revolving burning chamber to solve traditional burning problems, such as relict agglomeration and burning incompletely.
2)High flame temperature, so that burn fully and save energy.
3)Equipped with exclusive fire-brick, prolonging the service life.
4)Continuous work, don’t need to clear clinker everyday.
5)The low cost of fuel expense, just as 1/2 of oil cost
Technical Specifications:
model |
Coal spray amount (kghour) |
Motor power |
Rotary speed (r/min)/ |
Air flow (m3/h) |
Air pressure water column(mm) |
MP80-3 |
30-80 |
4pole-5.5Kw |
2200-2300 |
800-1000 |
100 |
MP130-3 |
80-130 |
4pole-7.5Kw |
2200-2300 |
1000-1300 |
130 |
MP180-3 |
100-180 |
4pole-7.5Kw |
2300-2400 |
1200-1500 |
130 |
MP250-3 |
150-250 |
4pole-11Kw |
2300-2400 |
2000-2300 |
130 |
MP300-3 |
200-300 |
4pole-13Kw |
2300-2400 |
2100-2500 |
150 |
MP400-3 |
250-400 |
4pole-15Kw |
2300-2400 |
2300-1700 |
170 |
MP500-4 |
350-500 |
4pole-18.5Kw |
2200-2300 |
3200-4000 |
190 |
MP650-4 |
400-650 |
4pole-22Kw |
2100-2200 |
3500-4300 |
200 |
MP750-4 |
500-750 |
4pole-30Kw |
2100-2200 |
4000-4700 |
200 |
MP1000-4 |
600-1000 |
4pole-37Kw |
2100-2200 |
4500-5500 |
200 |
MP1500-4 |
800-1500 |
4pole-42Kw |
1900-2100 |
5800-6300 |
230 |
MP2000-4 |
1200-2000 |
4pole-47Kw |
1800-2000 |
6000-6800 |
270 |
MP2500-4 |
1800-2500 |
4pole-55Kw |
1800-1900 |
6500-7200 |
270 |
MP3000-4 |
2300-3000 |
4pole-75Kw |
1800-1900 |
7000-8500 |
290 |
