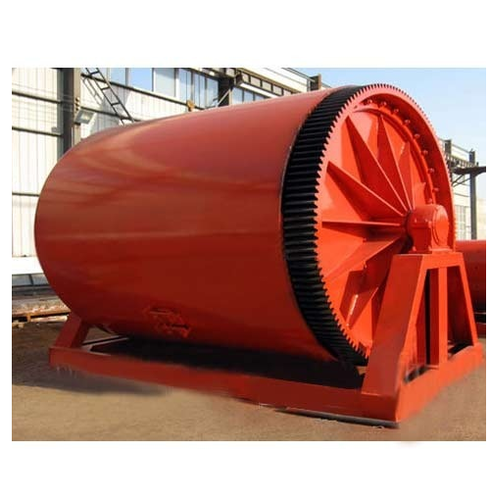

batch ball mill
Usage and application:
Batch ball mill ,also called ceramic ball mill ,it is used for fine grinding of feldspar,quartz,clay,ore and so on.The ceramic ball mill is mainly used for material mixing, grinding,uniform product fineness,and saving power.It can be dry or wet.The machine can use different liner types according to production needs to meet different needs.The fineness of the grinding operation is controlled by the grinding time.
Working principle
when ball mill working,steel balls inside drum will rotate with the drum to some height,and then steel balls fall down with materials to reach the point of grinding.
Technical specifications:
|
Model (ton per batch ) |
Cylinder size(mm) |
Material weight(t) |
Cylinder rotary speed (r/min) |
Motor power(KW) |
weight (T) |
|
0.2T |
Φ910×1120 |
0.2 |
35 |
2.2 |
1.91 |
|
0.5T |
Φ1200×1420 |
0.5 |
31.45 |
4 |
2.5 |
|
1T |
Φ1400×1800 |
1 |
27 |
7.5 |
3 |
|
1.5T |
Φ1800×2100 |
1.5 |
23 |
11 |
4.5 |
|
2.5T |
Φ2200×2200 |
2.5 |
20 |
18.5 |
6.5 |
|
3T |
Φ2200×2600 |
3 |
20 |
22 |
7 |
|
5T |
Φ2500×3000 |
5 |
16 |
37 |
13 |
|
8T |
Φ2800×3400 |
8 |
13.8 |
45 |
19 |
|
10T |
Φ2800×4000 |
10 |
13.8 |
55 |
20 |
|
15T |
Φ3000×5000 |
15 |
13 |
75 |
28 |
|
18T |
Φ3100×5000 |
18 |
12 |
90 |
28.5 |
|
20T |
Φ3200×5800 |
20 |
13 |
90 |
29.9 |
|
30T |
Φ3400×6500 |
30 |
14.2 |
110 |
32 |
|
40T |
Φ3600×7000 |
40 |
13 |
132 |
36 |
|
50T |
Φ3800×8000 |
50 |
11 |
200 |
45 |
|
60T |
Φ4000×8500 |
60 |
10 |
200 |
52 |
