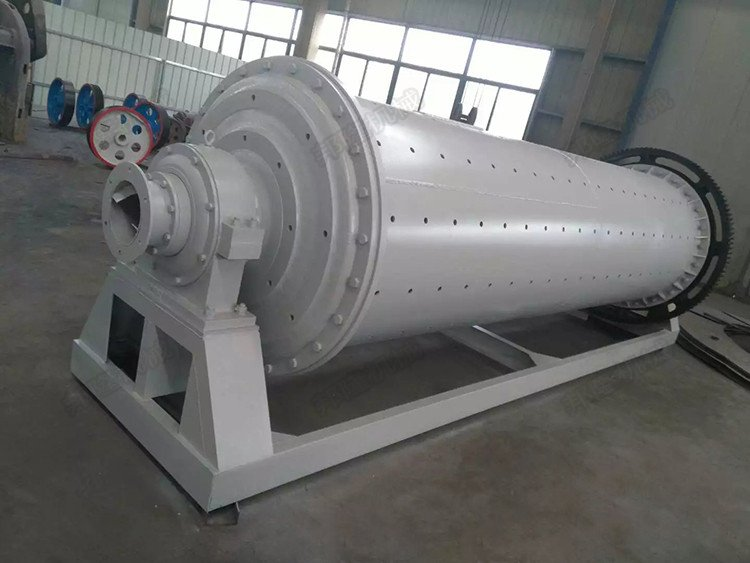

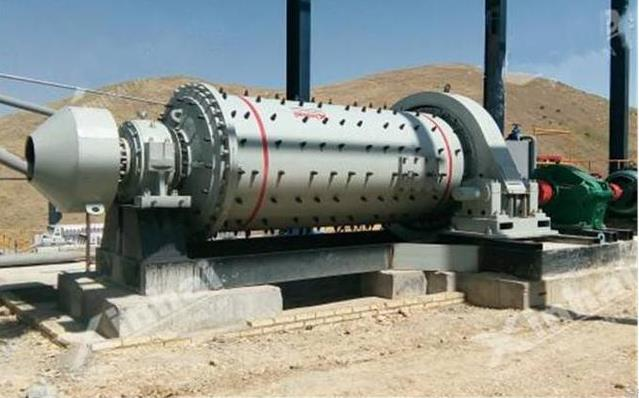

Dry ball mill

Usage and application :

Dry ball mill is the key milling equipment after materials has been crushed. It is widely used in Cement, silicate, new

construction material, refractory material, ferrous metal and nonferrous Metal as well as ceramics.

Working principle :

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Features:

1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.

2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.

3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.

4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.

Technical specifications:
