pulse dust collector

Usage and application:

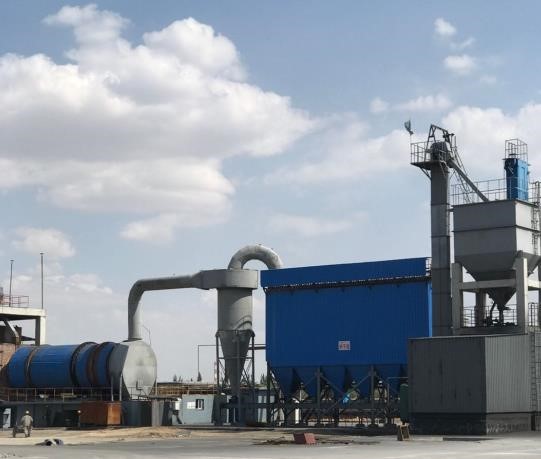

The pulse dust collector is widely used for dust collection during crushing, packing, lifting, conveying and other process producing powders.Its application includes cement plant,powder washing plant,etc.

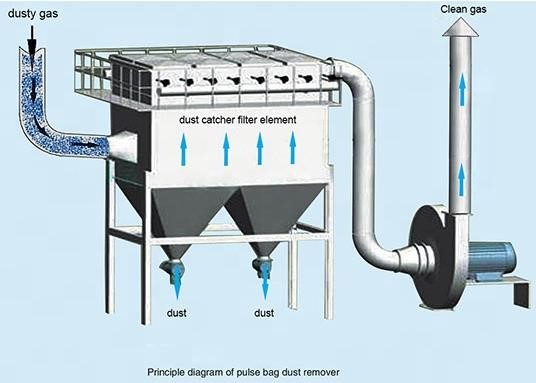

Working principle:

The dust-laden gas enters from the air inlet of the air box of the dust collector (the 32 series enters from the ash hopper) and is turned to the ash hopper through the inclined baffle. At the same time, the airflow speed becomes slow. The fine dust particles are folded upwards into the filter room with the airflow, and the dust adheres to the surface of the filter bag. The purified gas passes through the filter bag and enters the upper clean room. It is collected by the sub-clean rooms and passed through the air outlet. The main fan of the dust collection system Aspirate and discharge into the atmosphere.

Feature:

(1) no pre-dust equipment is required, and the soot with a concentration of up to 1000mg/m3 can be treated at one time. The emission is less than 50mg/m3. The process is simple.

(2) no blowpipe is needed in the bag room, and it is convenient to change the bag outside the machine;

(3) embedded elastic bag mouth with good sealing performance;

(4) the number of pulse valves is small, the strength of ash removal is large, and the action is rapid;

(5) the whole machine is controlled by computer automatically, and the parameters are easy to adjust, so that no work can be done.

(6) filter bag service life of more than two years;

(7) easy to realize isolation maintenance

Technical specifications:
