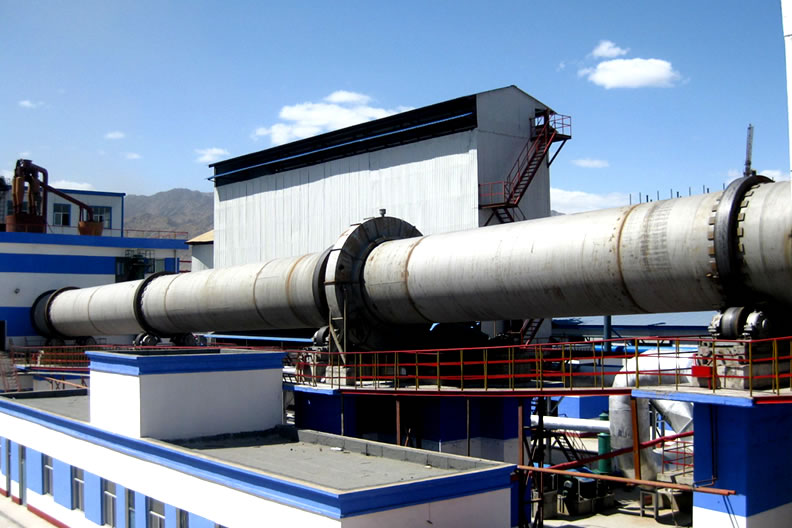

lime rotary kiln
Usage and applicatioin :
The lime kiln, also called active lime rotary kiln, is the main equipment used to calcine active lime, consisting of the drum body, the supporting device, the supporting device with hydraulic retaining wheel, the device, the device, the device for kiln tail.
Working principle:
Inside the kiln, coal powder or natural gas generates a quantity of heat, which, by the transfer of air, heats the material. At the moment, with the constant rotation of the kiln body based on the design of the slope and speed, the material rolls and advances inside the kiln periodically from the feeding end toward another end. In this period, the material has been calcined into the qualified clinker.
Features:
1. Effectively improving the preheating effect and high decomposition rate.
2. The Kiln lining is made from composite refractory material to reduce heat loss.
3. The simple structure; reliable operation; and convenient for the automation control.
4. The lime kiln has an advanced structure and adopts the both-ends combined sealing scales, which can decrease the possibility of air leakage.
Technical specifications:
|
:Specificatios Model |
The size of the kiln |
Yield |
Speed |
Electrical power (kw) |
Weight |
||
|
Diameter |
Length |
Gradient |
|||||
|
φ1.4×33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
|
φ1.6×36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
|
φ1.8×45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
|
φ1.9×39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
|
φ2.0×40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
|
φ2.2×45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
|
φ2.5×40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
|
φ2.5×50 |
2.5 |
50 |
3 |
6.25-7.4 |
0.62-1.86 |
55 |
187.37 |
|
φ2.5×54 |
2.5 |
54 |
3.5 |
6.9-8.5 |
0.48-1.45 |
55 |
196.29 |
|
φ2.7×42 |
2.7 |
42 |
3.5 |
10.0-11.0 |
0.10-1.52 |
55 |
198.5 |
|
φ2.8×44 |
2.8 |
44 |
3.5 |
12.5-13.5 |
0.437-2.18 |
55 |
201.58 |
|
φ3.0×45 |
3 |
45 |
3.5 |
12.8-14.5 |
0.5-2.47 |
75 |
210.94 |
|
φ3.0×48 |
3 |
48 |
3.5 |
25.6-29.3 |
0.6-3.48 |
100 |
237 |
|
φ3.0×60 |
3 |
60 |
3.5 |
12.3-14.1 |
0.3-2 |
100 |
310 |
|
φ3.2×50 |
3.2 |
50 |
4 |
40.5-42 |
0.6-3 |
125 |
278 |
