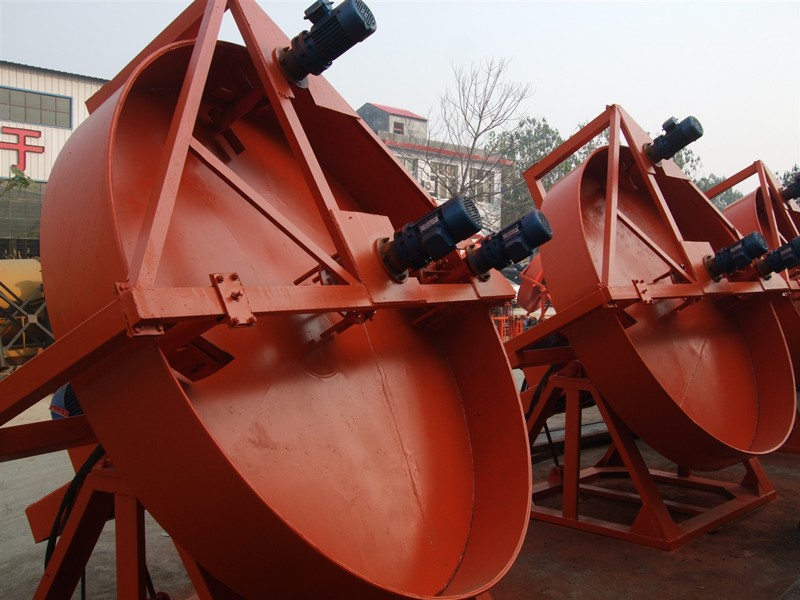

disc granulator
Usage and application:

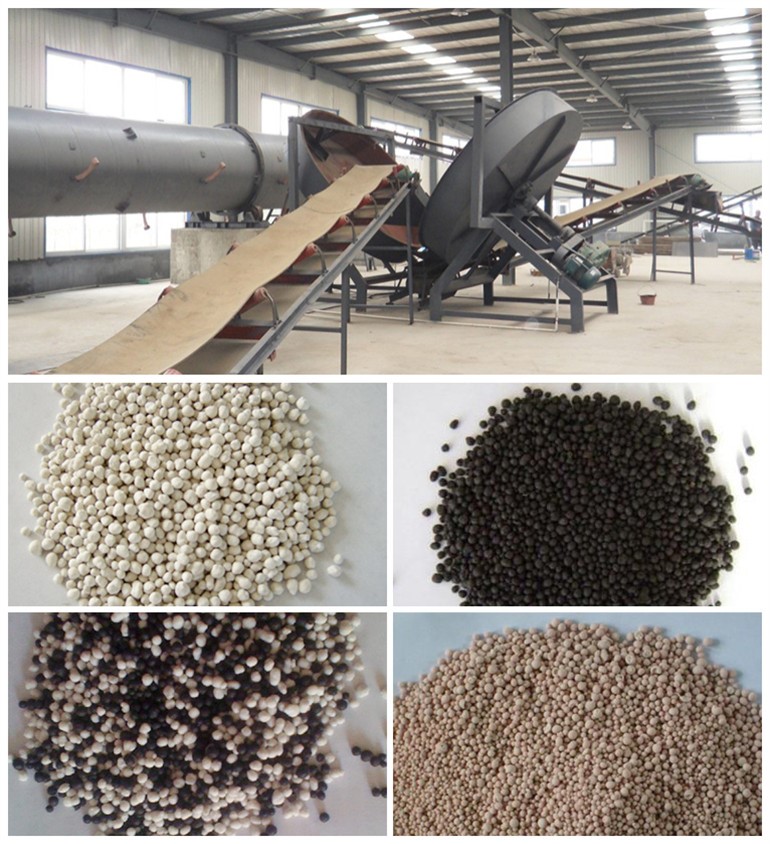

Disc granulator is widely used for producing round granules of organic fertilizer and compound fertilizer. Adopting arc disc angle structure, the granulation rate can be 93% above with uniform granules. The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.
Working Principle
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.
Features:
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life.
Technical specifications:
|
Model |
Disk speed(r/min) |
Production capacity(t/h) |
Power(kw) |
Disk adjustment range(°) |
Machine weight(t) |
|
Φ2.2 |
14.25 |
0.8-12 |
7.5 |
35-55 |
2.85 |
|
Φ2.5 |
11.81 |
1.0-1.5 |
7.5 |
35-55 |
3.25 |
|
Φ2.8 |
11.21 |
1.0-2.5 |
7.5 |
35-55 |
3.71 |
|
Φ3.0 |
11.3 |
2.0-3.0 |
11 |
35-55 |
4.35 |
|
Φ3.2 |
9.6 |
2.0-3.5 |
11 |
35-55 |
5.11 |
|
Φ3.6 |
9.1 |
3.0-5.0 |
15 |
35-55 |
6.51 |
