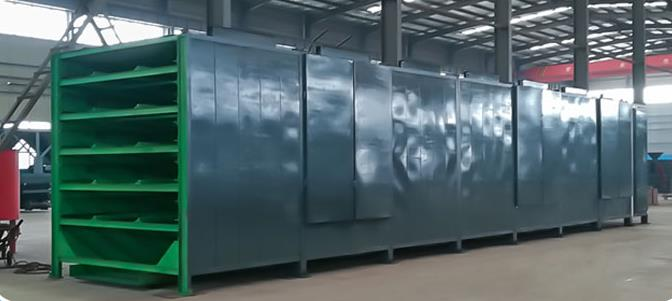

mesh belt dryer
Usage and application:
Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly used for drying different kinds of briquettes such as coal briquettes, mineral briquettes, iron briquettes etc. It is one of the most important equipment in the coal briquette production line.
Working principle:
The riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.
Features :
1) High efficency, high-yield, high evaporation intensity.
2) Standardization of production and capacity could be increased according to the number of segments.
3) High drying efficiency, no pollution, wide application.
4) Definite safety.
Technical specifications:
|
Model |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
DW-2-20 |
|
|
Quantity of unit |
4 |
5 |
4 |
5 |
4 |
5 |
10 |
|
|
Width of belt(m) |
1.2 |
1.6 |
2 |
|||||
|
Length of dry section(m) |
8 |
10 |
8 |
10 |
8 |
10 |
20 |
|
|
Operation temperature(oC) |
50-140 |
|||||||
|
Steam pressure(MPa) |
0.2-0.8 |
|||||||
|
Steam consumption (kg/h) |
120-300 |
150-375 |
150-400 |
180-500 |
180-500 |
225-600 |
450-1200 |
|
|
Drying time (h) |
0.2-1.2 |
1.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.5-3 |
|
|
Drying capacity(kg water/h) |
60-160 |
80-200 |
85-220 |
100-260 |
100-260 |
120-300 |
240-600 |
|
|
Total power (kw) |
11.4 |
13.6 |
14.6 |
18.7 |
19.7 |
24.5 |
51 |
|
|
Overall size |
L(m) |
9.56 |
11.56 |
9.56 |
11.56 |
9.56 |
11.56 |
21.56 |
|
W(m) |
1.49 |
1.49 |
1.9 |
1.9 |
2.32 |
2.32 |
2.32 |
|
|
H(m) |
2.3 |
2.3 |
2.4 |
2.4 |
2.5 |
2.5 |
2.5 |
|
|
Weight (kg) |
4500 |
5600 |
5300 |
6400 |
6200 |
7500 |
14000 |
|
