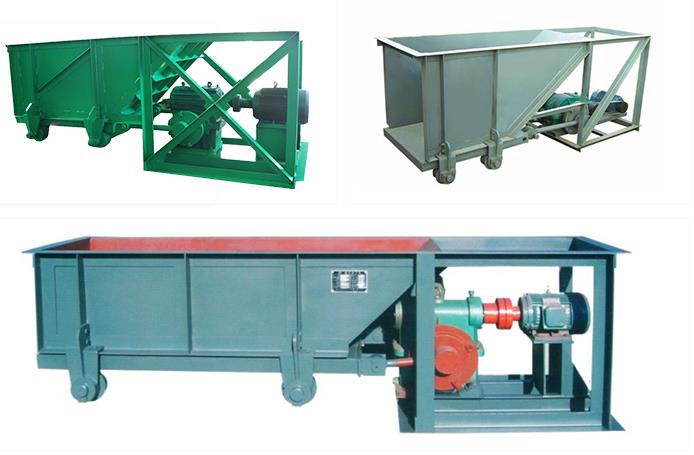

chute feeder

Usage and application:

Chute feeder is can be used in ore beneficiation, coal, chemistry, and other industrial departments and it is able to take out the granulate massive materials from the storage bin and send them to different types of material receiving devices, but it is not suitable for feeding concentrate powders or other powdery materials.

Working principle:

The devices are installed on the bottom of the ore bin outlet, the ore fall onto the leakage board at the chute bottom, the bottom of the leakage board is fixed on the idler, and through the eccentric institutions to connect the leakage board and the reducer together, and then through the coupling lined the motor. During the operation the motor drive the reducer through the coupling, and through the eccentric dish and the leaking plate, which is at the bottom of the frame also between the idlers, to move in reciprocating linear way, and achieve the feed uniformly

Features:

01 Simple structure, even feeding, good continues performance;
02 Change and control flow and feeding volume at any time;
03 Stable transmission, high efficiency;
04 Compact structure, reasonable design;
05 Excellent quality, wide application.

Technical Parameters:
