Electro magnetic separator

Usage and application:

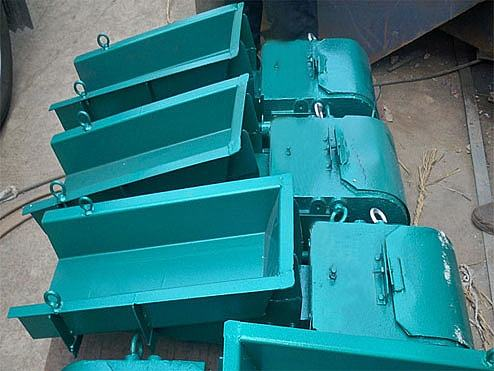

The electromagnetic vibrating feeder is used to uniformly or quantitatively supply materials from the storage bin or other storage equipment to the receiving equipment. It is an important equipment for automatic flow operation. It is divided into two types: open type and closed type.

Working principle:

The electromagnetic vibrating feeder uses the resonance principle of mechanical vibration, and the double mass body works in a low critical near resonance state. The material in the feeding trough is continuously thrown up during the feeding process, and jumps forward according to the parabolic trajectory. The control equipment of this series of electromagnetic vibrating feeder adopts a SCR half-wave rectification circuit, so the feeding amount can be conveniently adjusted by adjusting the opening angle of the SCR during use, and the centralized control and automation of the production process can be realized. control.

Features:

1. No rotating parts, no lubrication, simple structure and convenient maintenance.

2. The feeding method of this equipment is micro-polishing, so the wear rate of the trough in production is small.

3. The trough of this equipment is made of alloy steel plate, which can be used to transport high temperature and corrosive materials in production.

4. Small size, light weight and easy installation.

5. The eccentric block is the excitation source, with low noise, low power consumption, good adjustment performance, and no punching phenomenon.

Technical specifications:
