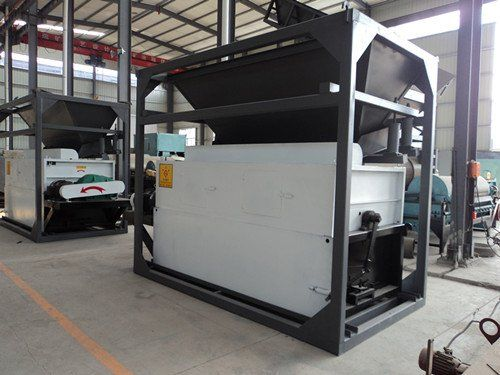

dry magnetic separator
Usage and application:
Dry Magnetic separator can separate materials with granularity below 3mm, such as magnetite, magnetic pyrite, roasted ore, titanic iron ore, hematite, limonite, siderite, wolframite, tantalum-niobium ore, red mud, quartz, fluorite and feldspar, wolfram and ilmenite etc. In recent years, it is also applied in purifying quartz, feldspar, Iron ore plant, other magnetic materials processing, coal, nonmetallic ore, construction industry and nepheline, etc.
Working Principle:
Feed material enters the feed hopper, the magnet assembly attracts the magnetic particles to the drum surface. the non magnetic material falling from the drum into the non magnetic discharge chute, and the magnetic material staying on the drum until it reached the magnetic discharge chute . There are two splits made, magnetic and non magnetic.
Features:
1. High magnetic field intensity and strong attracting force.
2. High iron-removal rate.
3. Free-maintenance.
4. Power saving.
5. Safe and reliable.
Technical specifications:
|
Model |
CTG 7518 |
CTG 9018 |
CTG 1018 |
CTG 1021 |
CTG1024 |
CTG 1230 |
|
Drum size (mm) |
750X1800 |
900X1800 |
1050X1800 |
1050X2100 |
1050X2400 |
1200X3000 |
|
Capacity (T/H) |
40 to 50 |
45 to 55 |
100 to 120 |
125 to 145 |
130 to 180 |
150 to 220 |
|
Feed size (mm) |
0 to 8 |
0 to 8 |
0 to 8 |
0 to 10 |
0 to 10 |
0 to 10 |
|
Motor (KW) |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
|
Water content |
0-3% |
0-3% |
0-3% |
0-3% |
0-3% |
0-3% |
|
Rotation (r/m) |
34 |
30 |
24.5 |
24.5 |
24.5 |
21 |
