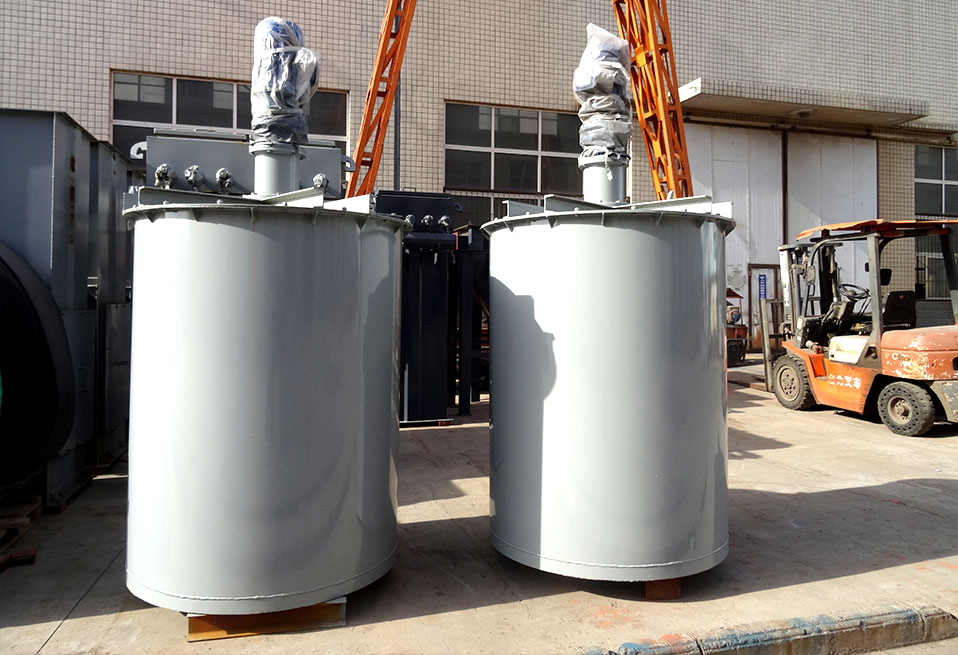

agitation tank

Usage and application :

Agitation tank is the main equipment of mineral processing line. It is installated between the classifier and the flotation machine. In this stage, the ore slurry flow to this tank, the chemicals add in this stage, after sufficient agitation, the slurry flow to flotation machine for separation.

Working principle:

The Agitating Tank is driven by the electric motor V-belt drive to rotate the impeller, fully mix the drug and the slurry, and increase the reaction time of the chemical to strengthen the reaction quality of the drug. The machine is suitable for mining, and can also be used as various chemical industries. Stir the ingredients.

The machine is arranged to fully mix the agent and the slurry before the flotation operation, so as to exert the effect of the medicament as much as possible, and it is suitable for the stirring of the slurry and the flotation agent having a concentration of not more than 30% and an ore density of not more than 3.5.

Features:

1. The Agitating Tank is small in size, light in weight, easy to install and disassemble

2. Tt is necessary to adjust the upper, lower, left and right positions and inclination angle of the mixer within the specified range

3. High stirring efficiency, good sealing performance

4. Gear reduction Smooth operation, low noise, and long life

Technical specifications:
