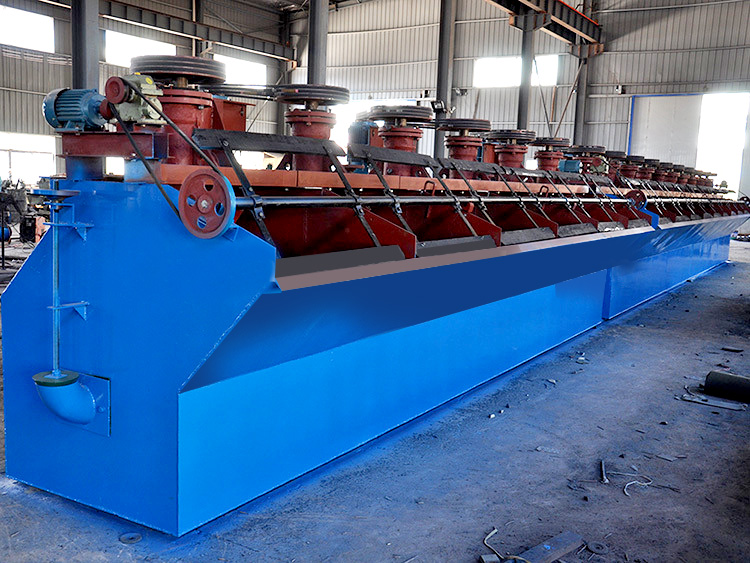

flotation machine
Usage and application :
Flotation machine applies to separation of non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. And flotation machine can be used in roughing, scavenging, selection or reverse flotation.During the flotation process

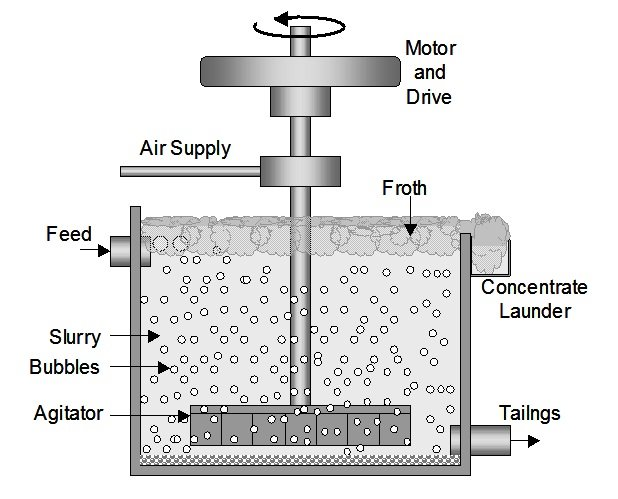

Working Princle:
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
Main Features of Flotation machine :
1. Large inhaling capacity and low energy consumption;
2. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;
3. Process is easy to be changed;
4. Reasonable circulation of pulp decreases coarse sand sedimentation;
5. Automatic controlling device makes adjustment more convenient. The impeller is rotated by V-belt of motor and produces centrifugal effect with negative pressure. Enough air is inhaled into mixed pulp, and pulp mixes with drug at the same time. Mineral sticks on bubble completely and floats on the surface of pulp to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surfac.
Technical specifications:
|
Type |
Model |
Effective volume (m³) |
Process capacity (m³/min) |
Main shaft scraper |
Trough size (L×W×H) (m) |
Single trough weight(t) |
|||
|
Power (kw) |
Rotary speed (r/min) |
Rotary speed (r/min) |
Power (kw) |
||||||
|
XJK |
XJK-0.35 |
0.35 |
0.18-0.4 |
1.5 |
483 |
25 |
1.1 |
0.7×0.7×0.7 |
0.5 |
|
XJK-0.62 |
0.62 |
0.3-0.9 |
3.0 |
400 |
25 |
1.1 |
0.90×0.82×0.85 |
1.0 |
|
|
XJK-1.1 |
1.1 |
0.6-1.6 |
5.5 |
330 |
25 |
1.1 |
1.1×1.1×1 |
1.4 |
|
|
XJK-2.8 |
2.8 |
1.5-3.5 |
11 |
280 |
25 |
1.1 |
1.75×1.6×1.1 |
2.5 |
|
|
XJK-5.8 |
5.8 |
5-7 |
22 |
240 |
25 |
1.5 |
2.2×2.2×1.2 |
3.6 |
|
|
SF flotation machine |
SF-0.37 |
0.37 |
0.2-0.4 |
1.5 |
386 |
25 |
1.1 |
0.7×0.7×0.75 |
0.5 |
|
SF-0.7 |
0.7 |
0.3-0.9 |
3 |
400 |
25 |
1.1 |
0.9×0.82×0.95 |
1.0 |
|
|
SF-1.2 |
1.2 |
0.6-1.6 |
5.5 |
330 |
25 |
1.1 |
1.1×1.1×1.1 |
1.9 |
|
|
SF-2.8 |
2.8 |
1.5-3.5 |
11 |
268 |
25 |
1.1 |
1.75×1.6×1.15 |
2.6 |
|
|
SF-4 |
4 |
2-4 |
15 |
220 |
25 |
1.5 |
1.85×2.05×1.2 |
2.9 |
|
|
SF-8 |
8 |
4-8 |
30 |
191 |
25 |
1.5 |
2.2×2.9×1.4 |
4.2 |
|
|
SF-10 |
10 |
5-10 |
30 |
191 |
25 |
1.5 |
2.2×2.9×1.7 |
4.5 |
|
|
SF-20 |
20 |
5-20 |
30×2 |
191 |
25 |
1.5 |
2.85×3.8×2 |
9.9 |
|
