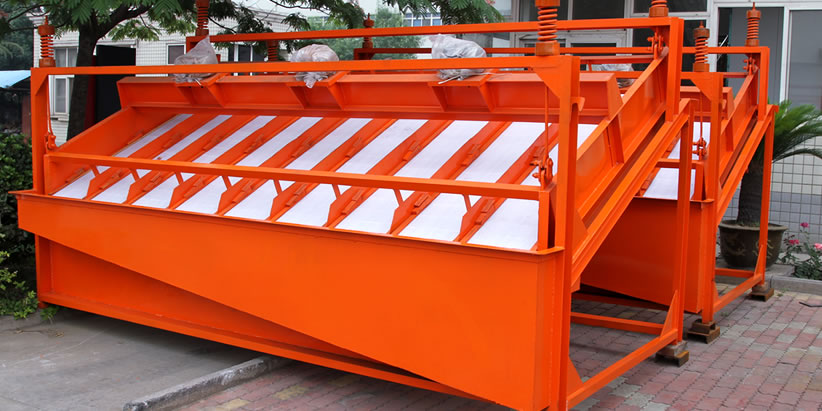

high frequency screen
Usage and application :
The high frequency vibrating screen is referred to as a high-frequency screen, which is composed of a vibration exciter, a slurry distributor, a screen frame, a frame, a suspension spring, and a screen. It is widely used in mineral processing, coal preparation, chemistry, brick making, food, pharmaceutics, alkali, fertilizer, paper, and other industries.
Features:
1. The high-frequency screen has high efficiency, small amplitude, and high screening frequency.
2. The sieve machine adopts a new principle design. It is a new structure of high-efficiency screen vibrating screening machine, generally using nylon or stainless steel sieve plates.
3. The side plate of the screen box is formed by integral bending of the steel plate, which not only improves its overall rigidity and working reliability but also makes the shape of the equipment more beautiful.
4. Reliable structure, strong excitation force, small vibration noise, being sturdy and durable, long service life, low maintenance costs.
Technical specifications:
|
model |
Screen area(㎡) |
concentration (%) |
capacity(t/h) |
power(kw) |
|
GPS-4 |
4.5 |
30-40 |
15-25 |
0.72 |
|
GPS-5 |
5.2 |
30-40 |
20-30 |
1.1 |
|
GPS-6 |
6 |
30-40 |
24-36 |
1.5 |
|
GPS-8 |
8.1 |
30-40 |
32-48 |
2.2 |
